渭河精密平口钳QY86 高精度
Key words:
classification:
Machine tool accessories
渭河精密平口钳QY86 高精度
Graphic details
◎产品参数》》》》》》

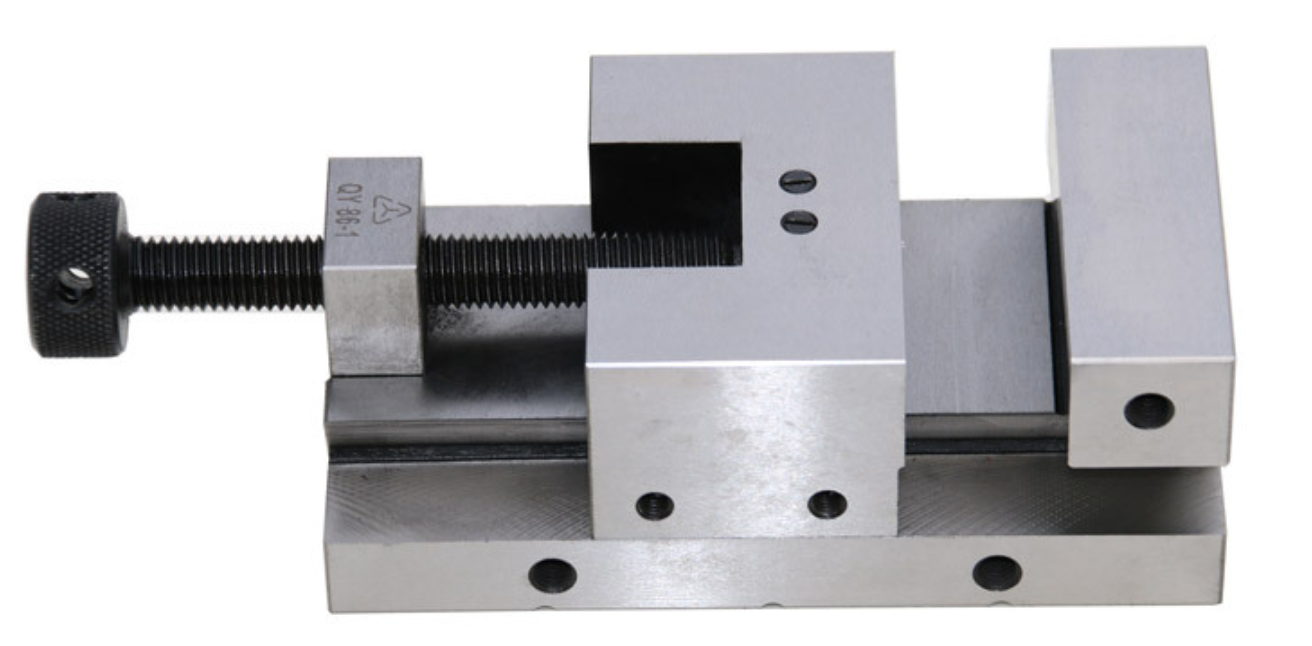

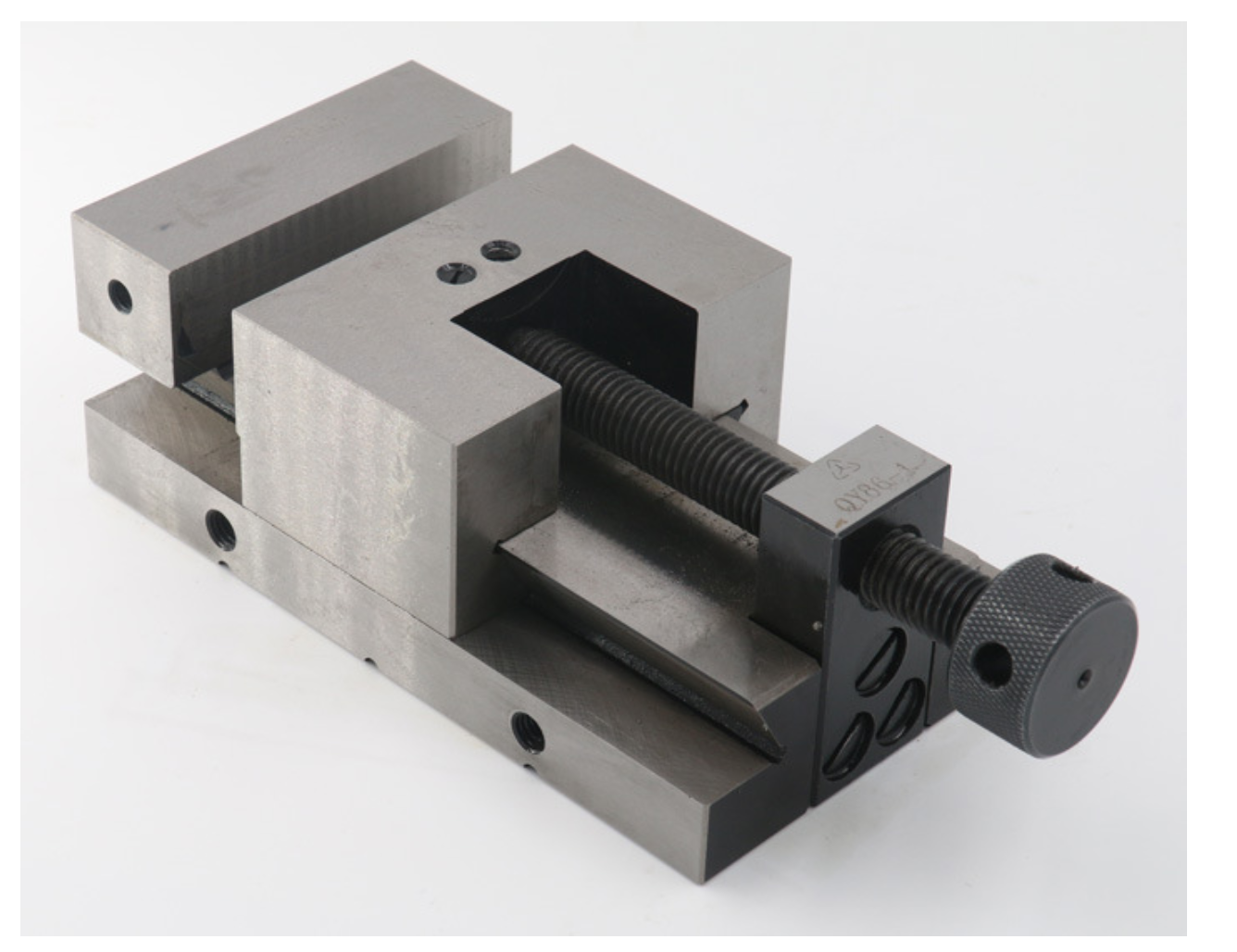

QY86平口钳
钳身材料:碳素工具钢T10A锻造
钳口硬度:58-62HRC
结构形式:燕尾导轨三角丝杠,承载力更大。
外形尺寸:长160mm宽86mm高60mm
主要参数:钳口宽度86mm最大张口86mm钳口深度27mm
平行度:0.01/100mm垂直度:0.01/100mm
重量:
适用范围:磨床、加工中心、钳工划线

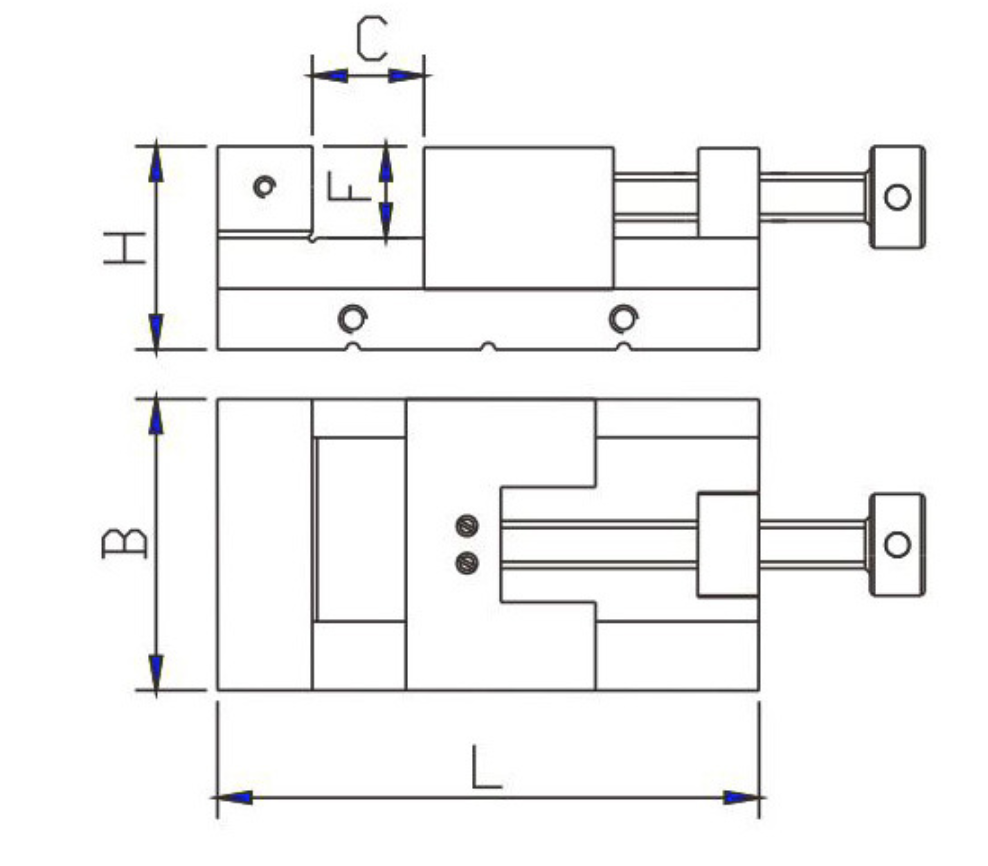

规格QY86
钳口宽86mm
最大张口C 86mm
钳口深F 27mm
总高60mm
钳身长度160mm
精度平行度0.01/100垂直度0.01
