小模数精密齿轮伞齿轮内齿轮蜗轮蜗杆最小模数0.15到6
Key words:
classification:
Precision drive series
小模数精密齿轮伞齿轮内齿轮蜗轮蜗杆最小模数0.15到6
Graphic details
精密小模数齿轮加工
公司拥有从瑞士、西德、英国、日本等国家进口的高精度中、小模数齿轮加工设备和检测仪器,已有50多年的加工经验和成熟的工艺技术。年产精密齿轮10万件,加工模数0.15-10mm,精度等级最高可达4级。可为顾客提供各种中小模数圆柱齿轮、圆锥齿轮、内齿轮、组合齿轮、蜗轮蜗杆的加工业务。
可根据用户需求定制,来图来样加工。

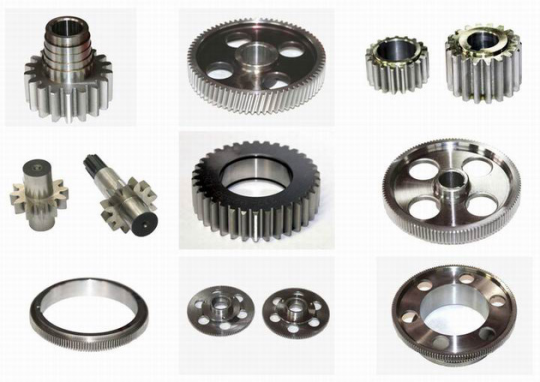

圆柱齿轮(直齿、斜齿)
模数:0.15-6mm最大直径:600mm精度:4级

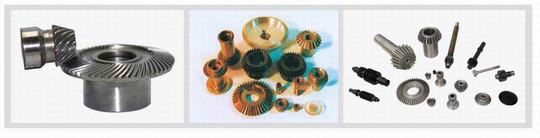

圆锥齿轮
模数:0.2-6mm最大直径:280mm精度:6级

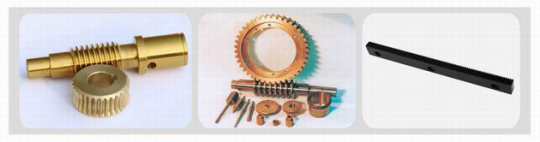

蜗轮、蜗杆、齿条、齿圈
蜗轮:端面模数:0.3-5mm最大直径:600mm
蜗杆:端面模数:0.3-5mm最大直径:100mm
齿条:模数:0.5-1.5mm最大倾角30°最大长度400mm

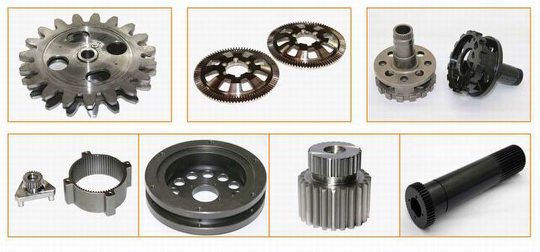

组合齿轮
